PPC-1527T-RSS-MK-IP

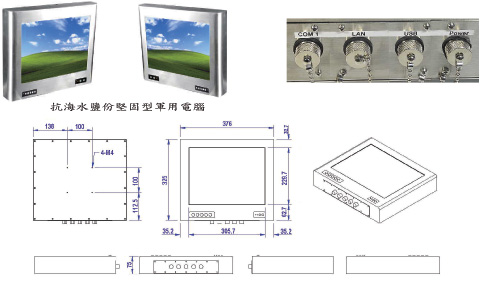

1527T-RSS-MK-IP-2

1527T-RSS-MK-IP-2

Technical Specifications

LCD Display Grade

  • LCD Size – 15” Active Matrix TFT LCD
  • Resolution – 1024 x 768 resolution
  • Aspect Ratio – 4 : 3 standard ratio
  • Luminance – 500 cd/m2 (optional : 1000~1200 nits for outdoor)
  • Color Depth – 16.7M colors
  • Contrast Ratio – 500 : 1 (typical)
  • Backlight life – 50,000 Hours at 25°C ambient temperature
  • Oper. Temperature – Operating temperature from -30° to +80 degree C

Touch Screen

  • Touch Screen – 15” 5-Wire Resistive Touch (option : multi-touch)
  • Resolution – 4096 x 4096 ultra high resolution

Military-grade High Quality Mainboard

  • Mainboard Grade – Military grade high quality motherboard
  • Chipset – IntelR NM10 Cedar Trail
  • CPU – Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
  • System Memory – 1GB, 2G, or 4GB DDR3 memory
  • SSD or HDD – 160, 250, 320G anti-shock HDD (Option : SSD)
  • DirectX / Open GL – Support DirectX 10.1 and Open GL 3.2

I/O Interface

  • VGA / RGB Port – VGA port support 2nd independent display
  • Graphics Chip – Intel® GMA 3600 graphics chip
  • DVMT Technology – Support High Definition video & audio signals
  • Video RAM – 1.5GB video share memory
  • LAN – 1 Giga bit LAN with military circular connector
  • COM (Serial) – 1 RS232 Port with military circular connector
  • USB Port – 4 USB 2.0 with 2 military circular connectors
  • DC Power – DC9 ~ 36V with military circular connector

Expansion Slot

  • Mini PCI-e slot – 1 Mini PCI-express slot
  • CF Slot – 1 Compact Flash slot
  • SATA Slot – 2 x SATA slot for more storage devices

Video Memory (Support DVMT)

  • Support DVMT – Support Dynamic Video Management Technology
  • Video RAM at 4G – 1.5GB video memory when RAM is 4G DDR3
  • Video RAM at 2G – 761MB video memory when RAM is 2G DDR3
  • Video RAM at 1G – 250MB video memory when RAM is 1GB DDR3

Mechanical

  • Front Bezel – Solid aluminum front bezel
  • Construction – Heavy-duty rugged steel construction

Mounting Method

  • Mounting – Support Panel-mount and Quick mount,
  • Wall-Mount – Support Rear and VESA-75 Wall mount

IP-65 Rating

  • Front Side – IP-65 Water-proof at the front side
  • Other Sides – IP-54
  • 6-Side Water-Proof – Yes, it is available at your option for extra cost

Power Adapter

  • AC Power Source – External AC adapter support 90 up to 264V
  • DC Power Source – Support DC 12V Power source
  • Option : DC9~36V – Optional DC9~36V is available at extra cost
  • Safety Approval – Power adapter is UL, cUL, TUV Approval

  • Environmental

    • Operate Temperature – Meet MIL-STD-810F, 0°C to +60°C
    • Storage Temperature – Meet MIL-STD-810F, -20°C ~ +80°C
    • Shock / Vibration – Meet MIL-STD-810F standard
    • CE / FCC / RoHS – Meet CE / FCC / RoHS standard
