PPC-1727PT-RMC

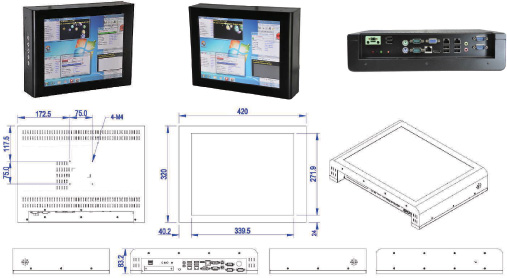

1727PT-RMC-2

1727PT-RMC-2

Technical Specifications

LCD Display Grade

  • LCD Size – 17” Active Matrix TFT LCD
  • Resolution – 1280 x 1024 resolution
  • Aspect Ratio – 4 : 3 standard ratio
  • Luminance – 300 cd/m2 (optional : 1000 nits for outdoor)
  • Color Depth – 16.7M colors
  • Contrast Ratio – 700 : 1 (typical)
  • Backlight life – 50,000 Hours at 25°C ambient temperature
  • Oper. Temperature – Operating temperature from -30° to +80 degree C

Touch Screen

  • Touch Screen – 17” 5-Wire Resistive Touch (option : multi-touch)
  • Resolution – 4096 x 4096 ultra high resolution

Military-grade High Quality Mainboard

  • Mainboard Grade – Military grade high quality motherboard
  • Chipset – IntelR NM10 Cedar Trail
  • CPU – Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
  • System Memory – Support 4G, 2G, or 1GB DDR3 RAM
  • SSD – 16G SSD (Option : 32G, 64G, 128G SSD)
  • HDD – Optional 160G, 250G, 320G anti-shock HDD
  • DirectX / Open GL – Support DirectX 10.1 and Open GL 3.2

I/O Interface

  • VGA / RGB Port – 1 VGA port support 2nd independent display
  • HDMI – 1 HDMI port support high definition video-audio
  • Graphics Chip – IntelR GMA 3600 graphics chip
  • DVMT Technology – Support Dynamic Video Management Tech.
  • Video RAM – 1.5GB video share memory when RAM is 4GB
  • LAN – 2 Giga bit LAN support 10 / 100 / 1000 Mbps
  • COM (Serial) – 6 COM (5 x RS232 + 1 RS232 / 422 / 485)
  • USB Port – 6 USB 2.0
  • DC Power – DC+12V
  • DC 9 ~ 36V – Optional DC 9 ~ 36V

Expansion Slot

  • PCI Slot – 1 PCI free Slot
  • Mini PCI-e slot – 1 Mini PCI-express slot
  • CF Slot – 1 Compact Flash slot
  • SATA Slot – 2 x SATA-II slot for more storage devices

Video Memory (Support DVMT)

  • Support DVMT – Support Dynamic Video Management Technology
  • Video RAM at 4G – 1.5GB video memory when RAM is 4G DDR3
  • Video RAM at 2G – 761MB video memory when RAM is 2G DDR3
  • Video RAM at 1G – 250MB video memory when RAM is 1GB DDR3

Mechanical

  • Construction – Rugged steel construction
  • Anti-corrosion – Anti-corrosion painting treatment

Mounting Method

  • Mounting – Support VESA-75 Wall mount and chassis mount
  • Wall-Mount – VESA-75 wall mount kit available at your request

IP-65 Rating

  • Front Side – IP-65 Water-resistant at the front side
  • Other Sides – IP-54
  • 6-Side Water-Proof – Available at your option

Power Adapter

  • DC Power Source – DC +12V Power in
  • DC 9 ~ 36V – Optional DC9~36V Wide power voltage in
  • AC Power Source – External AC adapter support 90 up to 264V
  • Safety Approval – Power adapter is UL, cUL, TUV Approval

  • Environmental

    • Operat Temperature – Meet MIL-STD-810F, 0°C to +60°C
    • Storage Temperature – Meet MIL-STD-810F, -20°C ~ +80°C
    • Shock / Vibration – Meet MIL-STD-810F standard
    • CE / FCC / RoHS – Meet CE / FCC / RoHS standard
