PPC-1795PT-AL-MK-Mar

17″ Rugged Marine Panel PC, Intel Core 2 Duo 2.13G, Touch, VGA,
HDMI, 2 Gb LAN, 6 COM, 6 USB, 2 PS2, Speakers, DNV Approval

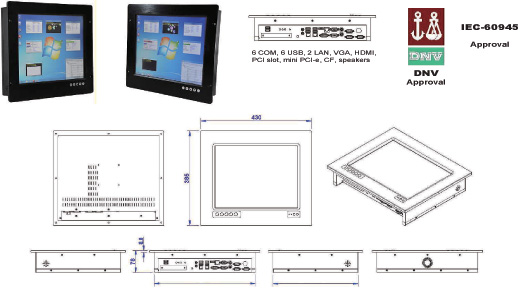

1795PT-AL-MK-Mar-2

1795PT-AL-MK-Mar-2

Technical Specifications

LCD Display Grade

  • LCD Size – 17” Active Matrix TFT LCD
  • Resolution – 1280 x 1024
  • Aspect Ratio – 4 : 3 standard ratio
  • Luminance – 300 cd/m2 (option : 1000 nits sunlight for outdoor)
  • Color Depth – 16.7M colors
  • Contrast Ratio – 700 : 1 (typical)
  • Backlight life – 50,000 Hours at 25°C ambient temperature

Touch Screen

  • Touch Screen – 17” 5-Wire Resistive Touch (option : multi-touch)
  • Resolution – 4096 x 4096 ultra high resolution

Military-grade High Quality Mainboard

  • Mainboard Grade – Military grade high quality motherboard
  • Chipset – IntelR NM10 Cedar Trail
  • CPU – Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
  • System Memory – 1GB, 2G, or 4GB DDR3 memory
  • SSD or HDD – 160, 250, 320G anti-shock HDD (Option : SSD)
  • DirectX / Open GL – Support DirectX 10.1 and Open GL 3.2

I/O Interface

  • VGA / RGB Port – VGA port support 2nd independent display
  • HDMI Port – Support High Definition video & audio signals
  • Graphics Chip – IntelR GMA 3600 graphics chip
  • DVMT Technology – Support Dynamic Video Management Tech.
  • Video RAM 4G– 1.5GB video RAM when RAM is 4G DDR3
  • Video RAM 2G– 761MB video RAM when RAM is 2G DDR3
  • Video RAM 1G– 250MB video RAM when RAM is 1G DDR3
  • LAN – Dual Giga bit LAN support 10/100/1000 Mbps
  • COM (Serial) – 6 COM Ports (or optional 3 COM for slim design)
  • USB Port – 6 USB 2.0
  • PS2 Port – PS2 Keyboard and PS2 Mouse
  • Audio In-Out Port – Audio-in and Audio-out Ports
  • Speakers – Built-in 2 loud speakers
  • Power connector – Military circular lockable tight connector
  • Digital I/O (option) – Optional 4 Digital Input and 4 Digital Output

Expansion Slot

  • PCI slot – 1 PCI slot
  • Mini PCI-e slot – 1 Mini PCI-express slot
  • CF Slot – 1 Compact Flash slot
  • SATA Slot – 2 x SATA slot for more storage devices

Video Memory (Support DVMT)

  • Support DVMT – Support Dynamic Video Management Technology
  • Video RAM at 4G – 1.5GB video memory when RAM is 4G DDR3
  • Video RAM at 2G – 761MB video memory when RAM is 2G DDR3
  • Video RAM at 1G – 250MB video memory when RAM is 1GB DDR3

Mechanical

  • Front Bezel – Solid aluminum front bezel
  • Construction – Heavy-duty rugged steel construction

Mounting Method

  • Mounting – Support Panel-mount and Quick mount,
  • Wall-Mount – Support Rear and VESA-75 Wall mount

IP-65 Rating

  • Front Side – IP-65 Water-proof at the front side
  • Back / Bottom – IP-54
  • 6-Side Water-Proof – Yes, it is available at your option for extra cost

Power Adapter

  • AC Power Source – External AC adapter support 90 up to 264V
  • DC Power Source – Support DC 12V Power source
  • Option : DC9~36V – Optional DC9~36V is available at extra cost
  • Safety Approval – Power adapter is UL, cUL, TUV Approval

  • Environmental

    • DNV Approve – DNV Approval for marine application
    • IEC-60945 Approve – IEC-60945 Approval for marine application
    • Operate Temperature – Meet MIL-STD-810F, 0°C to +60°C
    • Storage Temperature – MMeet MIL-STD-810F, -20°C ~ +80°C
    • Shock / Vibration – Meet MIL-STD-810F standard
    • CE / FCC / RoHS – Meet CE / FCC / RoHS standard
