PPC-1995PT-AL-MK-Mar

PPC-1995PT-AL-MK-Mar

19" Rugged Marine Panel PC, Intel Core 2 Duo 2.13G, Touch, VGA, HDMI, 2 Gb LAN, 6 COM, 6 USB, 2 PS2, Speakers, DNV Approval

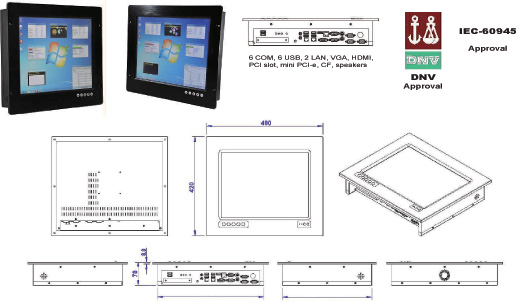

1995PT-AL-MK-Mar-2
1995PT-AL-MK-Mar-2
Technical Specifications LCD Display Grade
  • LCD Size - 19” Active Matrix TFT LCD
  • Resolution - 1280 x 1024
  • Aspect Ratio - 4 : 3 standard ratio
  • Luminance - 300 cd/m2 (option : 1000 nits sunlight for outdoor)
  • Color Depth - 16.7M colors
  • Contrast Ratio - 1000 : 1 (typical)
  • Backlight life - 50,000 Hours at 25°C ambient temperature

Touch Screen
  • Touch Screen - 19” 5-Wire Resistive Touch (option : multi-touch)
  • Resolution - 4096 x 4096 ultra high resolution

Military-grade High Quality Mainboard
  • Mainboard Grade - Military grade high quality motherboard
  • Chipset - IntelR NM10 Cedar Trail
  • CPU - Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
  • System Memory - 1GB, 2G, or 4GB DDR3 memory
  • SSD or HDD - 160, 250, 320G anti-shock HDD (Option : SSD)
  • DirectX / Open GL - Support DirectX 10.1 and Open GL 3.2

I/O Interface
  • VGA / RGB Port - VGA port support 2nd independent display
  • HDMI Port - Support High Definition video & audio signals
  • Graphics Chip - IntelR GMA 3600 graphics chip
  • DVMT Technology - Support Dynamic Video Management Tech.
  • Video RAM 4G- 1.5GB video RAM when RAM is 4G DDR3
  • Video RAM 2G- 761MB video RAM when RAM is 2G DDR3
  • Video RAM 1G- 250MB video RAM when RAM is 1G DDR3
  • LAN - Dual Giga bit LAN support 10/100/1000 Mbps
  • COM (Serial) - 6 COM Ports (or optional 3 COM for slim design)
  • USB Port - 6 USB 2.0
  • PS2 Port - PS2 Keyboard and PS2 Mouse
  • Audio In-Out Port - Audio-in and Audio-out Ports
  • Speakers - Built-in 2 loud speakers
  • Power connector - Military circular lockable tight connector
  • Digital I/O (option) - Optional 4 Digital Input and 4 Digital Output

Expansion Slot
  • PCI slot - 1 PCI slot
  • Mini PCI-e slot - 1 Mini PCI-express slot
  • CF Slot - 1 Compact Flash slot
  • SATA Slot - 2 x SATA slot for more storage devices

Video Memory (Support DVMT)
  • Support DVMT - Support Dynamic Video Management Technology
  • Video RAM at 4G - 1.5GB video memory when RAM is 4G DDR3
  • Video RAM at 2G - 761MB video memory when RAM is 2G DDR3
  • Video RAM at 1G - 250MB video memory when RAM is 1GB DDR3

Mechanical
  • Front Bezel - Solid aluminum front bezel
  • Construction - Heavy-duty rugged steel construction

Mounting Method
  • Mounting - Support Panel-mount and Quick mount,
  • Wall-Mount - Support Rear and VESA-75 Wall mount

IP-65 Rating
  • Front Side - IP-65 Water-proof at the front side
  • Back / Bottom - IP-54
  • 6-Side Water-Proof - Yes, it is available at your option for extra cost

Power Adapter
  • AC Power Source - External AC adapter support 90 up to 264V
  • DC Power Source - Support DC 12V Power source
  • Option : DC9~36V - Optional DC9~36V is available at extra cost
  • Safety Approval - Power adapter is UL, cUL, TUV Approval

  • Environmental
    • DNV Approve - DNV Approval for marine application
    • IEC-60945 Approve - IEC-60945 Approval for marine application
    • Operate Temperature - Meet MIL-STD-810F, 0°C to +60°C
    • Storage Temperature - MMeet MIL-STD-810F, -20°C ~ +80°C
    • Shock / Vibration - Meet MIL-STD-810F standard
    • CE / FCC / RoHS - Meet CE / FCC / RoHS standard

    Other Models Available
    • PPC-8495T-AL - 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-10495T-AL - 10.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1595T-AL - 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1795T-AL - 17” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-PPC-1995T-AL - 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-2095T-AL - 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-2295T-AL - 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
    • PPC-2495T-AL - 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
