23.6 inch Wall Mount Touch Screen

23.6 inch Wall Mount Touch Screen


Specification:

Model Number

LCSJ-23.6A

Panel Details

Panel Type TFT-LCD 23.6”
Resolution 1920(RGB)x1080(FHD)
Show Ratio 16:9
Working Area 521.28×293.22mm(H*V)
Pixel Distance 0.2715*0.2715mm(H*V)
Visual Angle 178°(H) / 178°(V)
Show Color 16.7M
Brightness 300cd/m²
Contrast Ratio 1000:1
Back light WLED
Lifespan ≥60000 Hours

Touch Parameters

Touch Type Capacitive Touch
Touch tools Finger or anything opaque
Recognizable ≥5mm
Accuracy ±1.5mm; sensitive touch 90%
Multi-point 10 points
Times Unlimited
First response ≤10ms
Lasting response ≤5ms

Android Version

Option 1 All Winner A83T: RAM:1G / ROM:8G
Option 2 All Winner A83T: RAM:2G / ROM:8G
Option 3 RockChipRK3288: RAM:2G / ROM:8G
Option 4 RockChip RK3288: RAM:2G / ROM:16G

Option 1 Intel i3 / RAM:4GB +128G SSD
Option 2 Intel i5 / RAM:4GB +128G SSD
Option 3 Intel i7 / RAM:4GB +128G SSD

Power Consummation

Power Voltage AC100V-240V (50/60Hz)
Rated Power 35W
Standby ≤5W
Energy Efficiency 0.85cd/W

Detailed Function

Video Format MP4, 3GP, MPG, AVI, WMV, FLV, SWF, RMVB, MKV, VOB
Audio Format MP3, WMA, AMR, OGG, AAC, WAV, FLAC, APE
Image Format JPG, BMP, PNG, TIF, ICO, GIF, TGA
Play Mode Horizontal, Vertical, Full Screen, Split Screen
Log Management Supportive to terminal log and playlist log
Power Mode Time-setting On or Off | Manual

Product Features

Housing/Shell Steel sheet
Panel Protection Tempered glass (5mm)
Speaker 2*5W Stereo
Control Interface USB2.0, RJ-45, HDMI, VGA, DVI, MIC, WIFI, 3G
Temperature 0℃ to 40℃
Humidity 20% to 80%
Dimension 581.6×355.4×56(mm)
Frame Color Black, Silver (Customized)
Certificates CE/CB/ROHS/CCC/FCC/ISO9001/ISO14001/OHSAS18001
Accessories Remote Control, Power Cord, Key, Mounting bracket, Manual, Approval Certificate, Warranty Card
Net Weight 8Kg
Bracket VESA 400*400

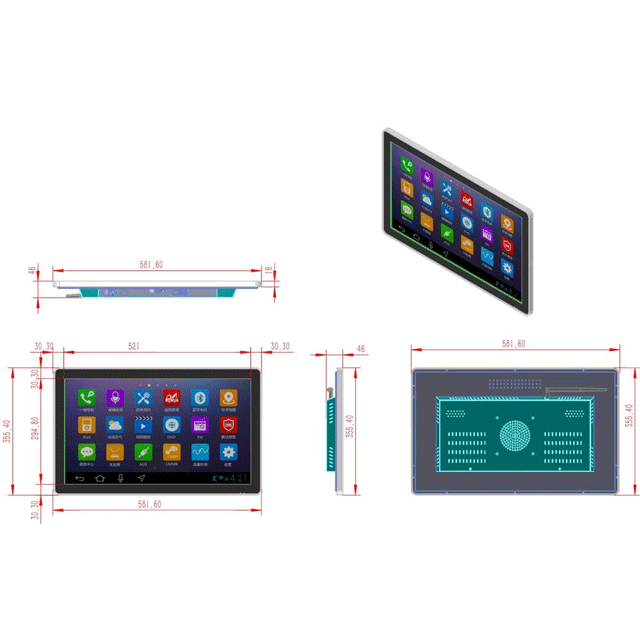

Design Drawing:
