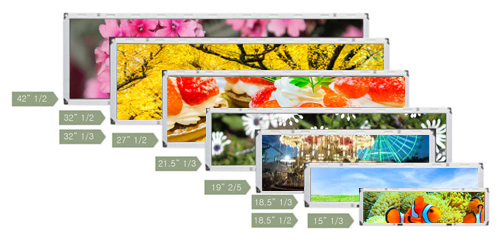

細長液晶シリーズ
特徴
- ・アスペクト比はカスタムモジュール
- ・レスポンスが早い
- ・自動スキャニング
- ・RoHs対応
| サイズ | 解像度 | 表示 | 寸法 | 輝度 |
|---|---|---|---|---|
| 3.9″ inch | 480X140 | 95.04X27.75 | 105.5X40.2X2.95 | 150 |
| 5.7″ inch | 800X310 | 137.52X50 | 154.8X62X5.0 | 200 |
| 7.36″ inch | 1280X400 | 178.56X55.8 | 192X70.6X5.0 | 700 |
| 16.8″ inch | 1366×378 | 409.8×113.4 | 430.37×137.6×11 | 700 |
| 19.1″ inch | 1920×338 | 476.6×84.4 | 495.5×108.5×10.6 | 700 |
| 19.1″ inch | 1920×338 | 476.6×84.4 | 497.4×109.5×14.5 | 700 |
| 19.2″ inch | 1920×384 | 476.6×96.3 | 495.6×121.3×10.6 | 700 |
| 19.7″ inch | 1920×624 | 476.6×154.9 | 495.5x180x10.6 | 700 |
| 21.9″ inch | 1920×720 | 521.28×195.48 | 544.8×222.76×9 | 280 |
| 24.6″ inch | 1920×578 | 597.9×180 | 624×208.8×17.6 | 700 |
| 28.8″ inch | 1920×360 | 698.4×131 | 729.3×167.3×19.4 | 600 |
| 28.8″ inch | 1366×384 | 697.68×196.12 | 739×239.4×29 | 550 |
| 28.8″ inch | 1920×540 | 698.4×196.425 | 739.2x239x29 | 550/1500 |
| 28.8inch Double side | 1366×384 | 697.68×196.12 | 739.2×286.48×30.6 | 620 |
| 28.8 inch DID | 1920×540 | 698.4×196.4（2个） | 1449.8×238.8×27.3 | 470 |
| 30 inch | 1366×512 | 697.68×261.5 | 739.1x339x29 | 750 |
| 36.8 inch | 1920×360 | 919.3×172.4 | 956.8×210.9×27 | 700 |
| 37.2 inch | 1920×360 | 930.24×179.42 | 972x218x24.8 | 700 |
| 38 inch | 1920×540 | 930.2×261.6 | 972x304x29 | 700 |
| 38 inch DID | 1920×540 | 930.2×261.6（2个） | 1927.4×304.4×28.2 | 700 |
| 40.8 inch DID | 1920×360 | 1018.1×191.2 | 1057.5×232.2×27.8 | 750 |
| 41.5 inch | 1920×540 | 1017.5×285.5 | 1057.5×326.5×29.7 | 770 |
| 41.5 inch DID | 1920×540 | 1017.5×285.5 | 2100.4×326.9×25 | 700 |
| 43 inch | 1920×480 | 1059.84×264.96 | 1084x289x58 | 700 |
| 48 inch | 3840×540 | 1209.6×170 | 1250.6×212.1×29.7 | 400 |
| 48.5 inch | 1920×360 | 1209.6×226.8 | 1249.6×267.8×27 | 700 |
| 49.5 inch | 1920×540 | 1209.6×340.2 | 1250.6x381x29.7 | 700 |
| 49.5 inch | 3840×1080 | 1209.6×340.1 | 1250.6×382.2×29.7 | 620 |
| 57.2 inch | 1920×364 | 1429×272.2 | 1470×314.2×29 | 700 |
| 57.5 inch | 1920×405 | 1428.4×301.2 | 1471.5×345.9×29 | 700 |
