PPC-1227T-RMC

PPC-1227T-RMC

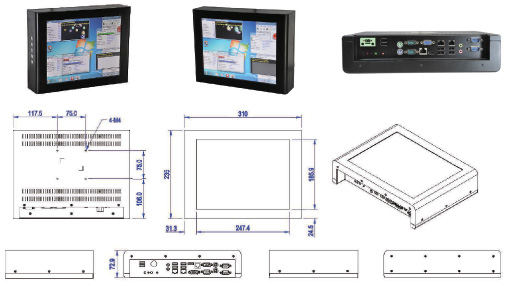

1227T-RMC-2
1227T-RMC-2
Technical Specifications LCD Display Grade
  • LCD Size - 12” Active Matrix TFT LCD
  • Resolution - 800 x 600 (Option : 1024 x 768) resolution
  • Aspect Ratio - 4 : 3 standard ratio
  • Luminance - 350 cd/m2 (optional : 1000~1200 nits for outdoor)
  • Color Depth - 16.7M colors
  • Contrast Ratio - 500 : 1 (typical)
  • Backlight life - 50,000 Hours at 25°C ambient temperature
  • Oper. Temperature - Operating temperature from -30° to +80 degree C

Touch Screen
  • Touch Screen - 12” 5-Wire Resistive Touch (option : multi-touch)
  • Resolution - 4096 x 4096 ultra high resolution

Military-grade High Quality Mainboard
  • Mainboard Grade - Military grade high quality motherboard
  • Chipset - IntelR NM10 Cedar Trail
  • CPU - Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
  • System Memory - Support 4G, 2G, or 1GB DDR3 RAM
  • SSD - 16G SSD (Option : 32G, 64G, 128G SSD)
  • HDD - Optional 160G, 250G, 320G anti-shock HDD
  • DirectX / Open GL -Support DirectX 10.1 and Open GL 3.2

I/O Interface
  • VGA / RGB Port - 1 VGA port support 2nd independent display
  • HDMI - 1 HDMI port support high definition video-audio
  • Graphics Chip - IntelR GMA 3600 graphics chip
  • DVMT Technology - Support Dynamic Video Management Tech.
  • Video RAM - 1.5GB video share memory when RAM is 4GB
  • LAN - 2 Giga bit LAN support 10 / 100 / 1000 Mbps
  • COM (Serial) - 6 COM (5 x RS232 + 1 RS232 / 422 / 485)
  • USB Port - 6 USB 2.0
  • DC Power - DC+12V
  • DC 9 ~ 36V - Optional DC 9 ~ 36V

Expansion Slot
  • PCI Slot - 1 PCI free Slot
  • Mini PCI-e slot - 1 Mini PCI-express slot
  • CF Slot - 1 Compact Flash slot
  • SATA Slot - 2 x SATA-II slot for more storage devices

Video Memory (Support DVMT)
  • Support DVMT - Support Dynamic Video Management Technology
  • Video RAM at 4G - 1.5GB video memory when RAM is 4G DDR3
  • Video RAM at 2G - 761MB video memory when RAM is 2G DDR3
  • Video RAM at 1G - 250MB video memory when RAM is 1GB DDR3

Mechanical
  • Construction - Rugged steel construction
  • Anti-corrosion - Anti-corrosion painting treatment

Mounting Method
  • Mounting - Support VESA-75 Wall mount and chassis mount
  • Wall-Mount - VESA-75 wall mount kit available at your request

IP-65 Rating
  • Front Side - IP-65 Water-resistant at the front side
  • Other Sides - IP-54
  • 6-Side Water-Proof - Available at your option

Power Adapter
  • DC Power Source - DC +12V Power in
  • DC 9 ~ 36V - Optional DC9~36V Wide power voltage in
  • AC Power Source - External AC adapter support 90 up to 264V
  • Safety Approval - Power adapter is UL, cUL, TUV Approval

  • Environmental
    • Operat Temperature - Meet MIL-STD-810F, 0°C to +60°C
    • Storage Temperature - Meet MIL-STD-810F, -20°C ~ +80°C
    • Shock / Vibration - Meet MIL-STD-810F standard
    • CE / FCC / RoHS - Meet CE / FCC / RoHS standard

    Other Models Available
    • PPC-8427T-AL - 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1027T-AL - 10” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1227T-AL - 12” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1527T-AL - 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-1927T-AL - 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-2027T-AL - 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
    • PPC-2227T-AL - 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
    • PPC-2427T-AL - 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
