PPC-1595T-RSS-MK-Mar
- LCD Size - 15” Active Matrix TFT LCD
- Resolution - 1024 x 768 resolution
- Aspect Ratio - 4 : 3 standard ratio
- Luminance - 450 cd/m2 (選購 : 1000 nits for outdoor)
- Color Depth - 16.7M colors
- Contrast Ratio - 500 : 1 (typical)
- Backlight life - 50,000 Hours at 25°C ambient temperature
- Oper. Temperature - Operating temperature from -30° to +80 degree C
Touch Screen
- Touch Screen - 15” 5-Wire Resistive Touch (option : multi-touch)
- Resolution - 4096 x 4096 ultra high resolution
Military-grade High Quality Mainboard
- Mainboard Grade - Military grade high quality motherboard
- Chipset - IntelR NM10 Cedar Trail
- CPU - Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
- System Memory - 1GB, 2G, or 4GB DDR3 memory
- SSD or HDD - 160, 250, 320G anti-shock HDD (Option : SSD)
- DirectX / Open GL - Support DirectX 10.1 and Open GL 3.2
I/O Interface
- VGA / RGB Port - VGA port support 2nd independent display
- Graphics Chip - Intel® GMA 3600 graphics chip
- DVMT Technology - Support High Definition video & audio signals
- Video RAM - 1.5GB video share memory
- LAN - 1 Giga bit LAN with military circular connector
- COM (Serial) - 1 RS232 Port with military circular connector
- USB Port - 4 USB 2.0 with 2 military circular connectors
- DC Power - DC9 ~ 36V with military circular connector
Expansion Slot
- Mini PCI-e slot - 1 Mini PCI-express slot
- CF Slot - 1 Compact Flash slot
- SATA Slot - 2 x SATA slot for more storage devices
Video Memory (Support DVMT)
- Support DVMT - Support Dynamic Video Management Technology
- Video RAM at 4G - 1.5GB video memory when RAM is 4G DDR3

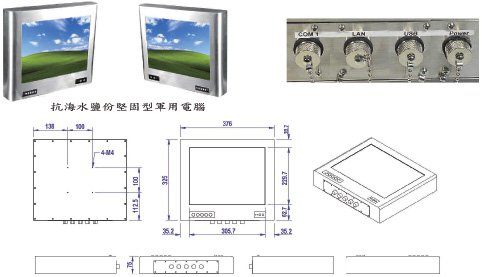

Mechanical
- 機構材質 - 抗海水鹽.不銹鋼機殼
- Construction - Anti-Sea Water 100% water-resistant stainless steel
- Color - Original stainless steel color
Mounting Method
- Mounting - Support VESA-75 wall mount,
- Wall-Mount - Wall mount kit is available at your request
IP-65 Rating
- Front Side - IP-65 Water-proof at the front side
- I/O Side - IP-65 water-resistant
- I/O Connector - 防水型軍用圓形接頭
Power Adapter
- DC Power Source - DC 12V Power connector
- AC Power Source - External AC Power adapter support 90~264V
- Safety Approval - Power adapter is UL, cUL, TUV Approval
- 工作溫度 - Meet MIL-STD-810F, -20°C to +70°CC
- 儲存溫度 - Meet MIL-STD-810F, -30°C ~ +80°C
- Shock / Vibration - Meet MIL-STD-810F standard
- CE / FCC / RoHS - Meet CE / FCC / RoHS standard
- 測試費用 - 由客戶負擔
- PPC-8427T-AL - 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1027T-AL - 10” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1227T-AL - 12” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1527T-AL - 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-PPC-1995T-AL - 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2095T-AL - 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2295T-AL - 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
- PPC-2495T-AL - 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
Environmental
Other Models Available
