PPC-2495PT-AL
23.6" Rugged Marine Panel PC, Intel Core 2 Duo 2.13G, Touch, VGA, HDMI, 2 Gb LAN, 6 COM, 6 USB, 2 PS2, Speakers, DNV Approval
- LCD Size - 23.6” Active Matrix TFT LCD
- Resolution - 1920 x 1080 Full HD resolution
- Aspect Ratio - 16 : 9 standard ratio
- Luminance - 300 cd/m2 (option : 1000 nits sunlight for outdoor)
- Color Depth - 16.7M colors
- Contrast Ratio - 3000 : 1 (typical)
- Backlight life - 50,000 Hours at 25°C ambient temperature
Touch Screen
- Touch Screen - 23.6” 5-Wire Resistive Touch (option : multi-touch)
- Resolution - 4096 x 4096 ultra high resolution
Military-grade High Quality Mainboard
- Mainboard Grade - Military grade high quality motherboard
- Chipset - IntelR NM10 Cedar Trail
- CPU - Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
- System Memory - 1GB, 2G, or 4GB DDR3 memory
- SSD or HDD - 160, 250, 320G anti-shock HDD (Option : SSD)
- DirectX / Open GL - Support DirectX 10.1 and Open GL 3.2
I/O Interface
- VGA / RGB Port - VGA port support 2nd independent display
- HDMI Port - Support High Definition video & audio signals
- Graphics Chip - IntelR GMA 3600 graphics chip
- DVMT Technology - Support Dynamic Video Management Tech.
- Video RAM 4G- 1.5GB video RAM when RAM is 4G DDR3
- Video RAM 2G- 761MB video RAM when RAM is 2G DDR3
- Video RAM 1G- 250MB video RAM when RAM is 1G DDR3
- LAN - Dual Giga bit LAN support 10/100/1000 Mbps
- COM (Serial) - 6 COM Ports (or optional 3 COM for slim design)
- USB Port - 6 USB 2.0
- PS2 Port - PS2 Keyboard and PS2 Mouse
- Audio In-Out Port - Audio-in and Audio-out Ports
- Speakers - Built-in 2 loud speakers
- Power connector - Military circular lockable tight connector
- Digital I/O (option) - Optional 4 Digital Input and 4 Digital Output
Expansion Slot
- PCI slot - 1 PCI slot
- Mini PCI-e slot - 1 Mini PCI-express slot
- CF Slot - 1 Compact Flash slot
- SATA Slot - 2 x SATA slot for more storage devices
Video Memory (Support DVMT)
- Support DVMT - Support Dynamic Video Management Technology
- Video RAM at 4G - 1.5GB video memory when RAM is 4G DDR3
- Video RAM at 2G - 761MB video memory when RAM is 2G DDR3
- Video RAM at 1G - 250MB video memory when RAM is 1GB DDR3

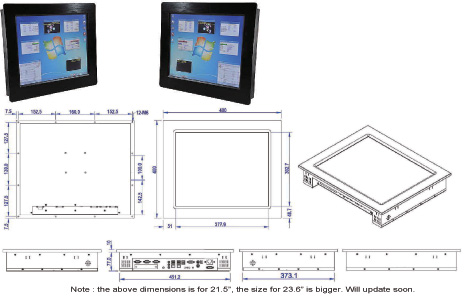

Mechanical
- Front Bezel - Solid aluminum front bezel
- Construction - Heavy-duty rugged steel construction
Mounting Method
- Mounting - Support Panel-mount and Quick mount,
- Wall-Mount - Support Rear and VESA-75 Wall mount
IP-65 Rating
- Front Side - IP-65 Water-proof at the front side
- Other Sides - IP-54
- 6-Side Water-Proof - Yes, it is available at your option for extra cost
Power Adapter
- AC Power Source - External AC adapter support 90 up to 264V
- DC Power Source - Support DC 12V Power source
- Option : DC9~36V - Optional DC9~36V is available at extra cost
- Safety Approval - Power adapter is UL, cUL, TUV Approval
- DNV Approve - DNV Approval for marine application
- IEC-60945 Approve - IEC-60945 Approval for marine application
- Operate Temperature - Meet MIL-STD-810F, 0°C to +60°C
- Storage Temperature - Meet MIL-STD-810F, -20°C ~ +80°C
- Shock / Vibration - Meet MIL-STD-810F standard
- CE / FCC / RoHS - Meet CE / FCC / RoHS standard
- PPC-8495T-AL - 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-10495T-AL - 10.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1595T-AL - 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1795T-AL - 17” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-PPC-1995T-AL - 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2095T-AL - 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2295T-AL - 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
- PPC-2495T-AL - 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
Environmental
Other Models Available
