PPC-8427T-RMC

Technical Specifications
LCD Display Grade
- LCD Size – 8.4” Active Matrix TFT LCD
- Resolution – 800 x 600 resolution
- Aspect Ratio – 4 : 3 standard ratio
- Luminance – 350 cd/m2 (option : 1000 nits sunlight for outdoor)
- Color Depth – 262,144 colors)
- Contrast Ratio – 400 : 1 (typical)
- Backlight life – 50,000 Hours at 25°C ambient temperature
- Oper. Temperature – Operating temperature from -30° to +80 degree C
Touch Screen
- Touch Screen – 8.4” 5-Wire Resistive Touch (option : multi-touch)
- Resolution – 4096 x 4096 ultra high resolution
Military-grade High Quality Mainboard
- Mainboard Grade – Military grade high quality motherboard
- Chipset – IntelR NM10 Cedar Trail
- CPU – Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
- System Memory – Support 4G, 2G, or 1GB DDR3 RAM
- SSD – 16G SSD (Option : 32G, 64G, 128G SSD)
- HDD – Optional 160G, 250G, 320G anti-shock HDD
- DirectX / Open GL – Support DirectX 10.1 and Open GL 3.2
I/O Interface
- VGA / RGB Port – 1 VGA port support 2nd independent display
- HDMI – 1 HDMI port support high definition video-audio
- Graphics Chip – IntelR GMA 3600 graphics chip
- DVMT Technology – Support Dynamic Video Management Tech.
- Video RAM 4G– 1.5GB video RAM when RAM is 4G DDR3
- Video RAM 2G– 761MB video RAM when RAM is 2G DDR3
- Video RAM 1G– 250MB video RAM when RAM is 1G DDR3
- LAN – Dual Giga bit LAN support 10/100/1000 Mbps
- COM (Serial) – 6 COM Ports (or optional 3 COM for slim design)
- USB Port – 6 USB 2.0
- PS2 Port – PS2 Keyboard and PS2 Mouse
- Audio In-Out Port – Audio-in and Audio-out Ports
- Speakers – Built-in 2 loud speakers
- Power connector – Military circular lockable tight connector
- Digital I/O (option) – Optional 4 Digital Input and 4 Digital Output
Expansion Slot
- PCI Slot – 1 PCI free Slot
- Mini PCI-e slot – 1 Mini PCI-express slot
- CF Slot – 1 Compact Flash slot
- SATA Slot – 2 x SATA-II slot for more storage devices
Video Memory (Support DVMT)
- Support DVMT – Support Dynamic Video Management Technology
- Video RAM at 4G – 1.5GB video memory when RAM is 4G DDR3
- Video RAM at 2G – 761MB video memory when RAM is 2G DDR3
- Video RAM at 1G – 250MB video memory when RAM is 1GB DDR3
Mechanical
- Construction – Rugged steel construction
- Anti-corrosion – Anti-corrosion painting treatment

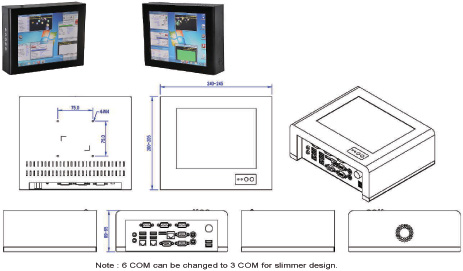

Mounting Method
- Mounting – Support VESA-75 Wall mount and chassis mount
- Wall-Mount – VESA-75 wall mount kit available at your request
IP-65 Rating
- Front Side – IP-65 Water-resistant at the front side
- Other Sides – IP-54
- 6-Side Water-Proof – Available at your option
Power Adapter
- DC Power Source – DC +12V Power in
- DC 9 ~ 36V – Optional DC9~36V Wide power voltage in
- AC Power Source – External AC adapter support 90 up to 264V
- Safety Approval – Power adapter is UL, cUL, TUV Approval
- Operat Temperature – Meet MIL-STD-810F, 0°C to +60°C
- Storage Temperature – Meet MIL-STD-810F, -20°C ~ +80°C
- Shock / Vibration – Meet MIL-STD-810F standard
- CE / FCC / RoHS – Meet CE / FCC / RoHS standard
