PPC-1595PT-AL
15" Rugged Panel PC, Coer 2 Duo 2.13G, Touch, VGA, HDMI Dual Gb LAN, 6 COM, 6 USB, PS2 KB / Mouse, Speakers, PCI
- LCD Size - 15” Active Matrix TFT LCD
- Resolution - 1024 x 768 resolution (Option : 1920 x 1080 FHD)
- Option - Option : 1920 x 1080 Full HD 15.6” Wide LCD
- Aspect Ratio - 4 : 3 standard ratio (option : 16 : 9 Wide)
- Luminance - 350 cd/m2 (option : 1000 nits sunlight for outdoor)
- Color Depth - 16.2 M colors)
- Contrast Ratio - 600 : 1 (typical)
- Backlight life - 50,000 Hours at 25°C ambient temperature
Touch Screen
- Touch Screen - 15” 5-Wire Resistive Touch (option : multi-touch)
- Multi-Touch 10-Pnt - Optional 10-point Multi Touch
- Resolution - 4096 x 4096 ultra high resolution
Military-grade High Quality Mainboard
- Mainboard Grade - Military grade high quality motherboard
- Chipset - IntelR NM10 Cedar Trail
- CPU - Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
- System Memory - 1GB (Option : 2G, 4GB) DDR3 RAM memory
- SSD or HDD - 160, 250, 320G anti-shock HDD (Option : SSD)
2D / 3D Video
- Graphics Chip - Intel® PowerVR SGX 545 3D video chip
- DirectX - Support DirectX 10.1 with shader model 4.1
- Open GL - Support Open GL 3.2
I/O Interface
- VGA / RGB Port - Support 15-Pin female D-Sub VGA port
- HDMI Port - Support HDMI port for high quality video & audio
- Graphics Chip - IntelR PowerVR SGS545
- Video RAM - 384MB Video share RAM
- LAN - Dual Giga bit LAN support 10/100/1000 Mbps
- COM (Serial) - 6 COM Ports (or optional 3 COM for slim design)
- USB Port - 6 USB 2.0
- 2 x PS2 Ports - 2 PS2 Ports for Keyboard and Mouse
- Audio In-Out Port - Audio-in and Audio-out Ports
- Speakers - Built-in 2 loud speakers
- Digital I/O (option) - Optional 4 Digital Input and 4 Digital Output
Expansion Slot
- PCI Slot - Option (available only when request)
- Mini PCI-e slot - 1 Mini PCI-express slot (for Wireless LAN, etc.)
- CF Slot - 1 Compact Flash slot
- SATA Slot - 2 x SATA slot for more storage devices

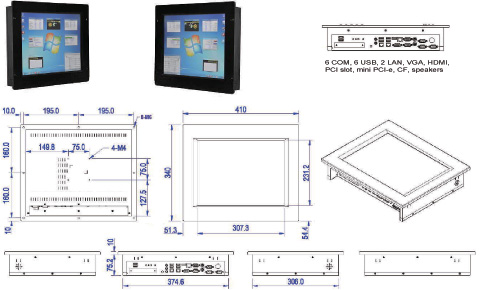

Mechanical
- Front Bezel - 10mm thick solid aluminum bezel
- Construction - Heavy-duty rugged steel construction
- Standard Color - Black color
Mounting Method
- Mounting - Support Panel-mount and Quick mount,
- Wall-Mount - Support Rear and VESA-75 Wall mount
IP-65 Rating
- Front Side - IP-65 Water-proof at the front side
- Other Sides - IP-54
- 6-Side Water-Proof - Yes, it is available at your option for extra cost
Power Adapter
- AC Power Source - External AC-DC adapter from 90 up to 264V
- DC Power Source - Support DC 12V Power source
- Option : DC9~32V - Optional DC9~32V is available at extra cost
- Safety Approval - Power adapter is UL, cUL, TUV Approval
- Operate Temperature - Meet MIL-STD-810F, 0°C to +60°C
- Storage Temperature - Meet MIL-STD-810F, -20°C ~ +80°C
- Shock / Vibration - Meet MIL-STD-810F standard
- Vibration - Meet MIL-STD-810F standard
- CE / FCC / RoHS - Meet CE / FCC / RoHS standard
- PPC-8427T-AL - 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1027T-AL - 10” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1227T-AL - 12” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1527T-AL - 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-15627T-AL - 15.6“ Fanless rugged PPC, Core 2 Duo 2.13G. FHD
- PPC-1727T-AL - 17” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-PPC-1927T-AL - 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2027T-AL - 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2227T-AL - 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
- PPC-2427T-AL - 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
Environmental
Other Models Available
