PPC-1795PT-AL
17″ Rugged Marine Panel PC, Intel Core 2 Duo 2.13G, Touch, VGA,
HDMI, 2 Gb LAN, 6 COM, 6 USB, 2 PS2, Speakers, DNV Approval

Technical Specifications
LCD Display Grade
- LCD Size – 17” Active Matrix TFT LCD
- Resolution – 1280 x 1024
- Aspect Ratio – 4 : 3 standard ratio
- Luminance – 300 cd/m2 (option : 1000 nits sunlight for outdoor)
- Color Depth – 16.7M colors
- Contrast Ratio – 700 : 1 (typical)
- Backlight life – 50,000 Hours at 25°C ambient temperature
Touch Screen
- Touch Screen – 17” 5-Wire Resistive Touch (option : multi-touch)
- Resolution – 4096 x 4096 ultra high resolution
Military-grade High Quality Mainboard
- Mainboard Grade – Military grade high quality motherboard
- Chipset – IntelR NM10 Cedar Trail
- CPU – Intel® fanless D2700 Core 2 Duo 2.13GHz CPU
- System Memory – 1GB, 2G, or 4GB DDR3 memory
- SSD or HDD – 16G SSD or 160G anti-shock HDD
- DirectX / Open GL – Support DirectX 10.1 and Open GL 3.2
I/O Interface
- VGA / RGB Port – VGA port support 2nd independent display
- HDMI Port – Support High Definition video & audio signals
- Graphics Chip – IntelR GMA 3600 graphics chip
- DVMT Technology – Support Dynamic Video Management Tech.
- Video RAM 4G– 1.5GB video RAM when RAM is 4G DDR3
- Video RAM 2G– 761MB video RAM when RAM is 2G DDR3
- Video RAM 1G– 250MB video RAM when RAM is 1G DDR3
- LAN – Dual Giga bit LAN support 10/100/1000 Mbps
- COM (Serial) – 6 COM Ports (or optional 3 COM for slim design)
- USB Port – 6 USB 2.0
- PS2 Port – PS2 Keyboard and PS2 Mouse
- Audio In-Out Port – Audio-in and Audio-out Ports
- Speakers – Built-in 2 loud speakers
- Power connector – Military circular lockable tight connector
- Digital I/O (option) – Optional 4 Digital Input and 4 Digital Output
Expansion Slot
- PCI slot – 1 PCI slot
- Mini PCI-e slot – 1 Mini PCI-express slot
- CF Slot – 1 Compact Flash slot
- SATA Slot – 2 x SATA slot for more storage devices
Video Memory (Support DVMT)
- Support DVMT – Support Dynamic Video Management Technology
- Video RAM at 4G – 1.5GB video memory when RAM is 4G DDR3
- Video RAM at 2G – 761MB video memory when RAM is 2G DDR3
- Video RAM at 1G – 250MB video memory when RAM is 1GB DDR3

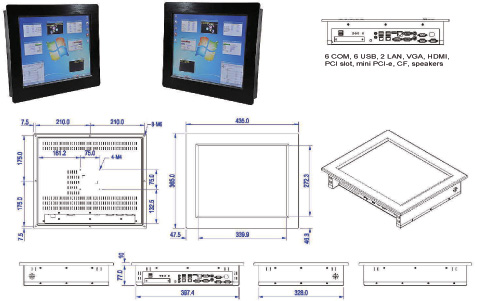

Mechanical
- Front Bezel – Solid aluminum front bezel
- Construction – Heavy-duty rugged steel construction
Mounting Method
- Mounting – Support Panel-mount and Quick mount,
- Wall-Mount – Support Rear and VESA-75 Wall mount
IP-65 Rating
- Front Side – IP-65 Water-proof at the front side
- Other Sides – IP-54
- 6-Side Water-Proof – Yes, it is available at your option for extra cost
Power Adapter
- AC Power Source – External AC adapter support 90 up to 264V
- DC Power Source – Support DC 12V Power source
- Option : DC9~36V – Optional DC9~36V is available at extra cost
- Safety Approval – Power adapter is UL, cUL, TUV Approval
- DNV Approve – DNV Approval for marine application
- IEC-60945 Approve – IEC-60945 Approval for marine application
- Operate Temperature – Meet MIL-STD-810F, 0°C to +60°C
- Storage Temperature – Meet MIL-STD-810F, -20°C ~ +80°C
- Shock / Vibration – Meet MIL-STD-810F standard
- CE / FCC / RoHS – Meet CE / FCC / RoHS standard
- PPC-8495T-AL – 8.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-10495T-AL – 10.4” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1595T-AL – 15” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-1795T-AL – 17” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-PPC-1995T-AL – 19” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2095T-AL – 20” Fanless Rugged Panel PC, Core 2 Duo 2.13G
- PPC-2295T-AL – 22” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
- PPC-2495T-AL – 24” Fanless Rugged Panel PC, Core 2 Duo 2.13G, FHD
Environmental
Other Models Available
